+ 3-Point Lock System (Upgrade)
+ 2-Point Lock System Standard
+ Strong Fusion-Welded Corners
+ Iridium Coating Resists Corrosion
+ Aluminum-Reinforced Sill
+ Foam Fill Frame & Sash Standard
+ Black Stainless Spacer Standard
FEATURES
Steel hooks automatically lock at two or three points along frame when door contacts frame
Aluminum Threshold
Sloped, aluminum reinforced sill guides rainwater outside and away from your home
Fusion-welding at door panel corners transforms four vinyl extrusions into a strong, one-piece door
Smooth gliding, solid steel, zinc-plated tandem rollers
Foot Operated Lock
Iridium coating on exposed parts enhances corrosion resistance
Black Stainless Spacer
An engineered product designed to achieve thermal performance effortlessly
Introducing Intercept Stainless Sealant Effectiveness & Gas Retention.
The sealant provides the moisture vapor barrier for the I.G. unit. The longer the transmission path, the slower the rate that moisture will travel into the unit through the seal. STAINLESS steel is impervious to gas transmission, improving gas retention and maximizing the insulation value of your window over time.
Unique "U-Channel" design allows superior flexibility with no load on sealant. Spacer can accompany glass as it expands and contracts.
PERFORMANCE
U-Value (U)
Ratings typically fall between 0.20 and 1.20. The lower the U-Factor, the better a product is at keeping the heat in the home or building.
Condensation Resistance (C)
This measures the performance level of a window/glazing system to help eliminate possible condensation. The higher the number, the better the window is at blocking condensation.
Solar Heat Gain Coefficient (S)
Refers to the amount of sunlight passing through a window as heat. The lower the rating, the better the window performs at reducing costs in the summer. Between 0-1.
Visible Transmission (VT)
Measures how much light comes through a product. VT is expressed as a number between 0 and 1. The higher the VT, the higher the potential for daylighting.
Glass Packages
foam fill standard
ratings

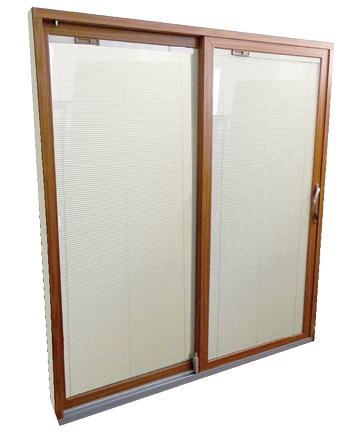

2 or 3 panel patio door
U | S | V | C
.29 | .23 | .49 | 59
excel² triple argon
triple pane
U | S | V | C
.25 | .21 | .45 | 62
excel ultimate² argon
triple pane
U | S | V | C
.21 | .17 | .34 | 64
U | S | V | C
.28 | .32 | .57 | 59
elite² triple argon
triple pane
U | S | V | C
.25 | .29 | .52 | 62
extreme² argon
triple pane
U | S | V | C
.21 | .25 | .45 | 64
OPTIONS
Glass Lites
view 3/8" groove
colonial flat
colonial contour
slimline brass
antique brass
satin nickel
floral
elongated floral
simulated divided lites (SDLs)*
*Simulated Divided Lites are EXTERIOR muntins.
Glass Designs
colonial
prairie
double prairie
diamond
obscure
rain glass
Interior Window + Muntin Colors
white
tan
medium oak
dark oak
cherry
vintage pecan
Exterior Paint Colors
tan
brick red
white
green
brown
beige
midnight black
bronze
clay
gray
architectural bronze
Exterior Laminate Colors
wicker
choco brown
bronze
coal black
Hardware Finishes + Colors
polished brass
aged bronze
satin nickel
antique brass
tan
(tan windows)
brown
(brown windows)
coppertone
(woodgrain standard)
white
(standard)
Internal Blinds
white
alabaster
tan
gold
silver
Screen Selection
BetterVUE®
(standard) Simulated Divided Lites
Each grid in the SDL is accurately trimmed to precise length and fused with high quality joint work. There are streamlined aluminum rails within the glass panes, creating the look of a traditional true divided lite window without forfeiting thermal performance.
