High Performance Structural Sill Interlock
Vinyl "fin" at the lower sill locks into the base at the bottom sash, further improving strength & performance
Limit Lock
Reliable Limit Lock securing a partial opening for safety
Continuous Over/Under Interlock & Triple Weather Stripping
Prevent air infiltration
Patented True-Position® Stainless Steel Balance System
Long lasting, craded springs roll & unroll along sash for silent and smooth operation, never slip (shown without cover)
Introducing Intercept Stainless Sealant Effectiveness & Gas Retention.
The sealant provides the moisture vapor barrier for the I.G. unit. The longer the transmission path, the slower the rate that moisture will travel into the unit through the seal. STAINLESS steel is impervious to gas transmission, improving gas retention and maximizing the insulation value of your window over time.
Unique "U-Channel" design allows superior flexibility with no load on sealant. Spacer can accompany glass as it expands and contracts.

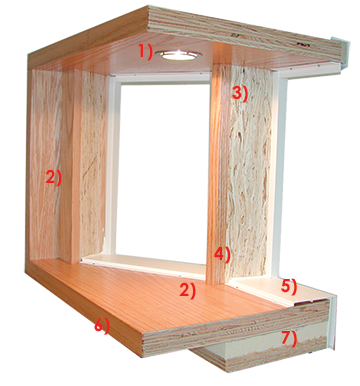

1) Low Voltage Recessed Lights (Optional Upgrade)
2) 1¼" Furninture Grade Oak or Birch Hardwood Veneer
(Optional Factory Finish) Pre-Stained/Pre-Painted & Sealed
3) Timberstrand ® Structural Solid Wood Vertical Mullion1s
4) Solid Hardwood Interior Trim
5) Vinyl Cladding Exterior
Painted Exteriors to match your Decorator Colors!
6) Edge Banding
Enables Casings to be installed with a Reveal
7) Insulated Seat
R9 or R21 - Provides Maximum Thermal Efficiency
High Performance Structural Sill Interlock
Vinyl "fin" at the lower sill locks into the base at the bottom sash, further improving strength & performance
U-Value (U)
Ratings typically fall between 0.20 and 1.20. The lower the U-Factor, the better a product is at keeping the heat in the home or building.
Condensation Resistance (C)
This measures the performance level of a window/glazing system to help eliminate possible condensation. The higher the number, the better the window is at blocking condensation.
Solar Heat Gain Coefficient (S)
Refers to the amount of sunlight passing through a window as heat. The lower the rating, the better the window performs at reducing costs in the summer. Between 0-1.
Visible Transmission (VT)
Measures how much light comes through a product. VT is expressed as a number between 0 and 1. The higher the VT, the higher the potential for daylighting.
